Combine topographical and radar mapping data with CAD models

Environmental analysis requires resolving a large amount of complex detail. Environmental geometry is also at times restricted by simplistic and poorly defined CAD data.

BOXER enables you to combine large topographical and radar mapping data sets together with CAD models, even when data is incomplete or of varying resolution.

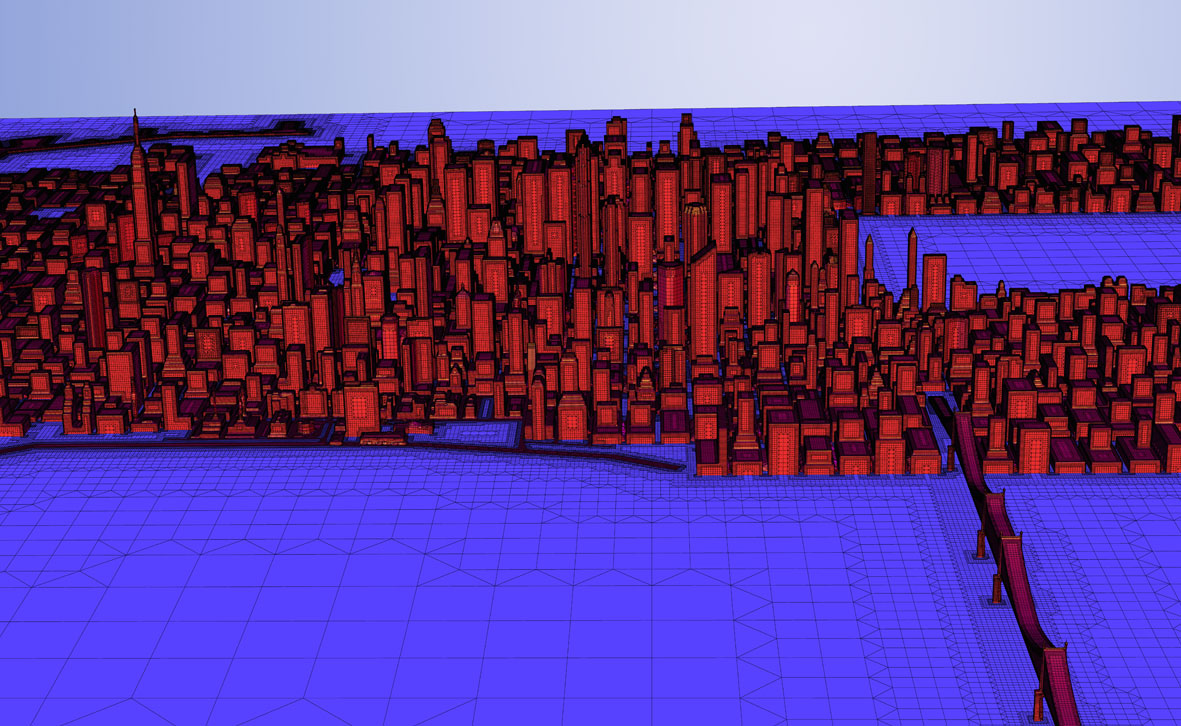

Produce high-quality meshes resolving large range of length scales.

Using the BOXERgeom level set tool, natural processes such as corrosion and erosion can be simulated on structures or landscapes by using scalar data such as reaction or erosion rate.

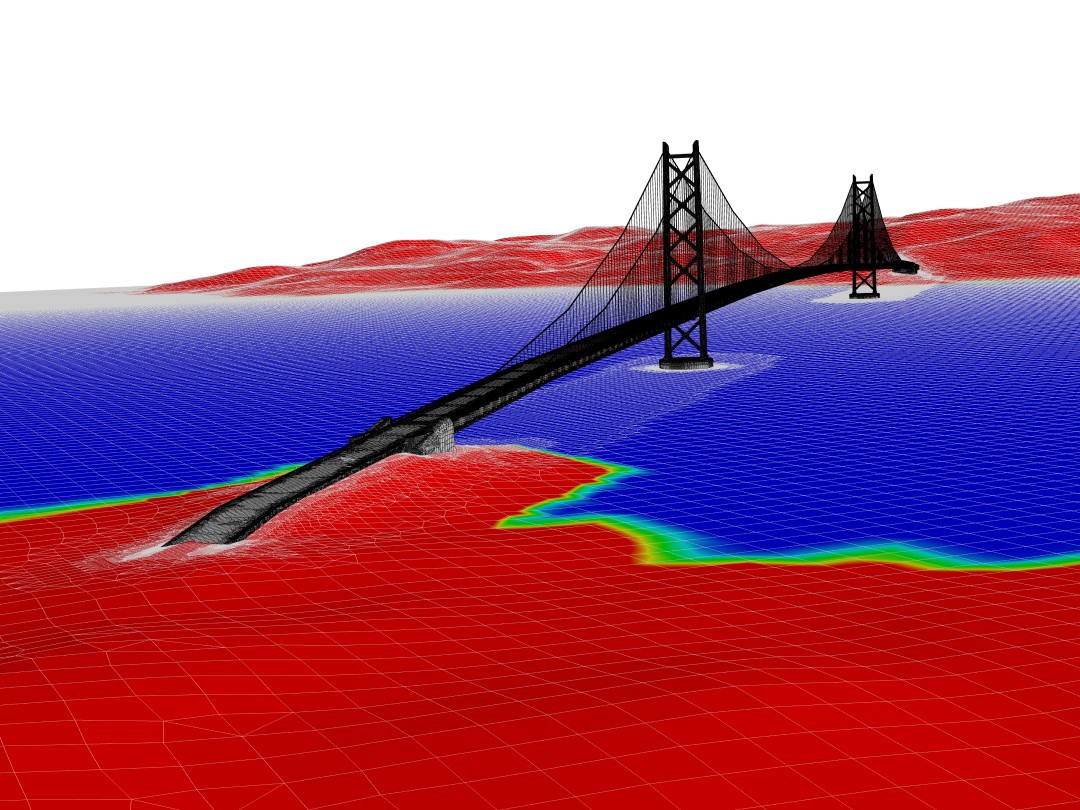

Topography from NASA SRTM Database
Bridge CAD from Sketchup Warehouse

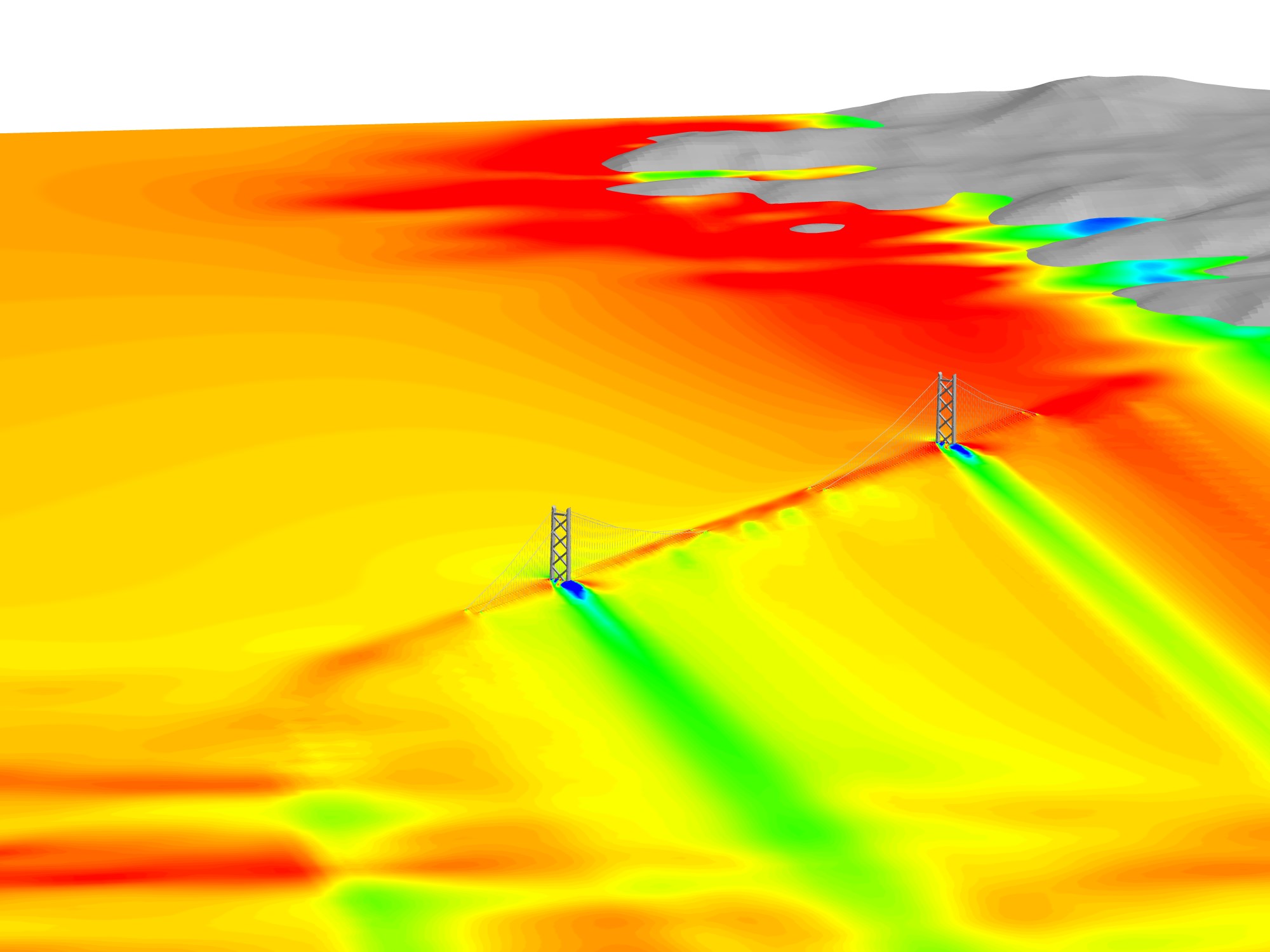

Wind contours around the Akashi-Kaikyo Bridge in Japan.
